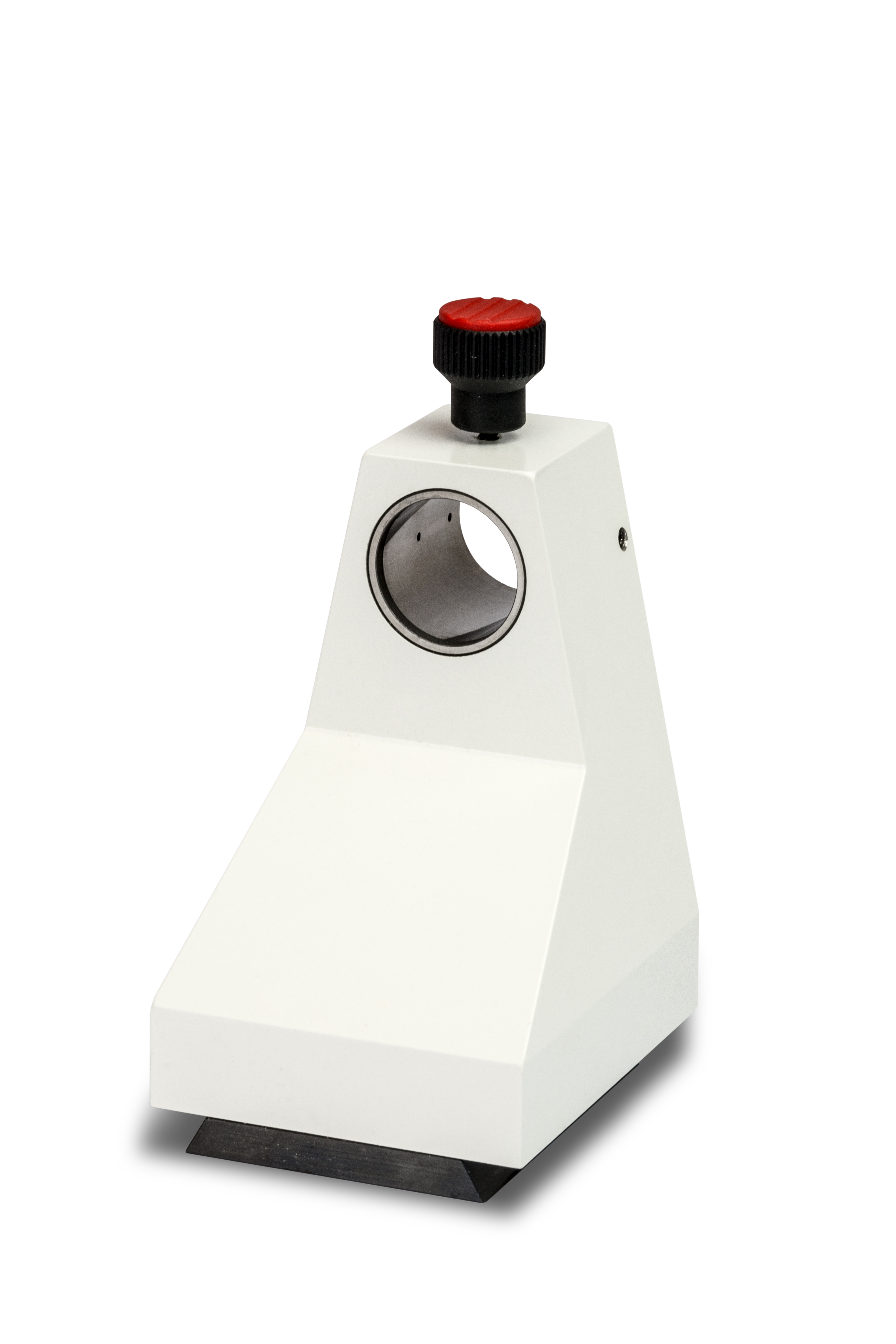

Support arm with mounting hole 28 mm H7
For incremental probes with 28 mm clamping shaft.

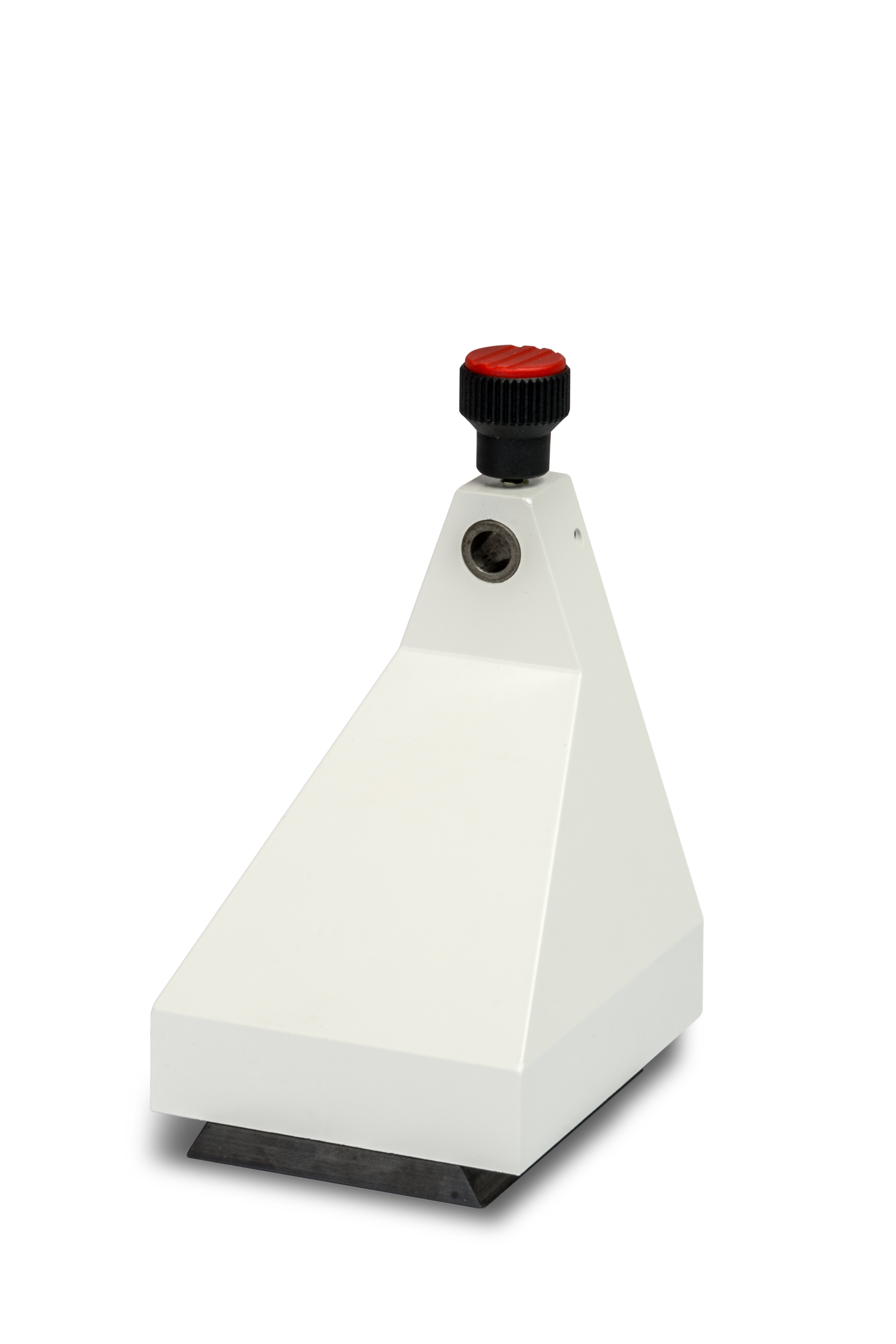

Support arm with mounting hole 8 mm H7
For incremental or inductive probes, dial gauges and precision indicators with 8 mm clamping shaft.
Measuring table with 3 mm dust groves 180 x 120 mm
Flat lapped measuring table with 3 mm dust groves for large objects.
Flat measuring table 100 x 100 mm
Lapped flat measuring table for small and meadium size objekts
Adjustable table with 6 mm pins
With adjustable anvil in x and y axis for exchangable measuring contacts with 6 mm hole. One measuring attachement flat, 8 mm.
Support for plug gauges
Support for tilting to find the reserval point on cylindrical plug
gaues and threaded plugs.
Set of measuring contacts
Measuring contacts round R22,5. plane 2 mm and 8 mm, knife edge 2 x 1 mm. Reference ball 5 mm ruby. To measure plugs and threads
