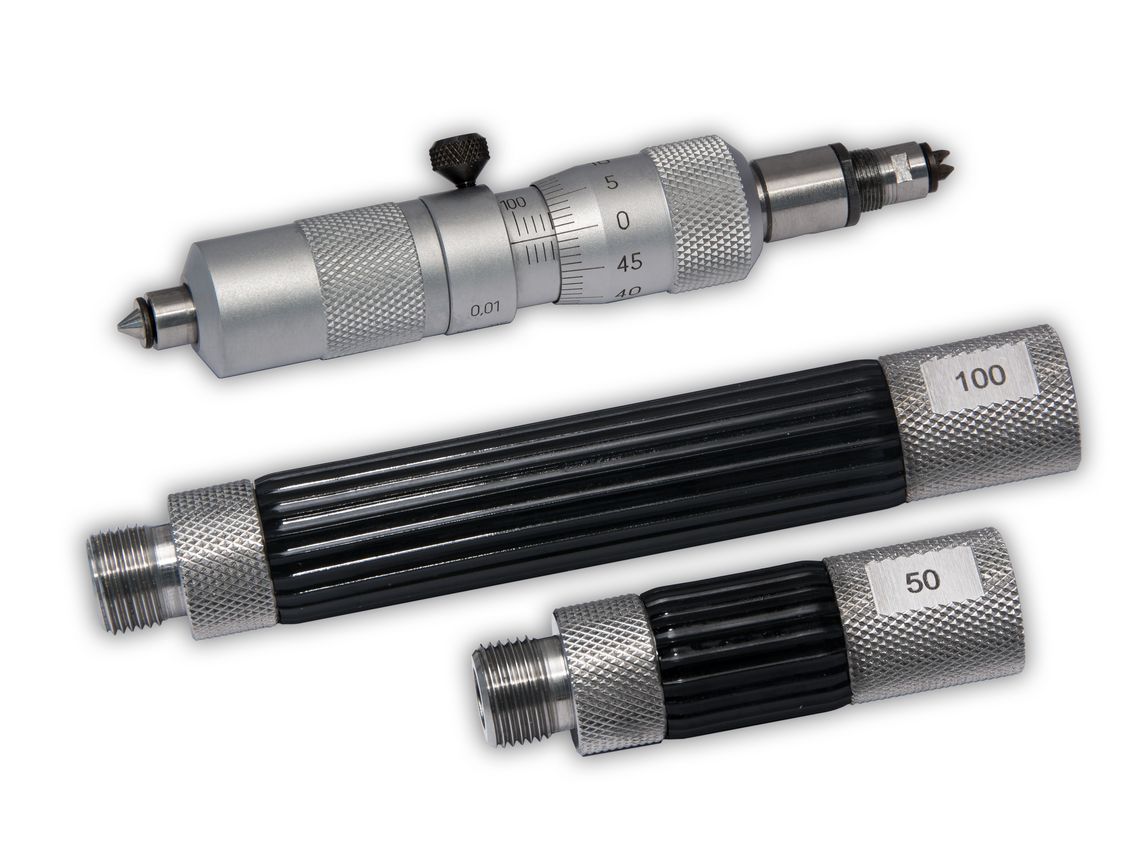

Precision internal micrometer 352 with interchangeable thread measuring inserts (modular)

Modular measuring gauges for measuring internal threads using removable measuring inserts.



Application

for inside thread measurement with interchangeable thread measuring inserts (can be extended)

Detailed information

  • Graduation 0,01 mm
  • Spindle pitch 0,5 mm
  • Display range 10 mm / 25 mm
  • Error limits according to DIN 863
  • Direct reading of pitch diameter
  • Multipurpose application by exchangeable inserts
  • Many possible application variations with extensions
  • Adherence to Abbe measuring principle

Accessory

  • thread measuring inserts
  • thread setting gauges



Special Versions

  • Non-magnetic
  • Digital measuring unit
  • Special extensions



Application rangeOrder No.Gauge block extensions
100 - 205 mm76 9374 001 2015 mm, 25 mm, 50 mm
100 - 505 mm76 9374 002 2015 mm, 25 mm, 50 mm, 100 mm, 200 mm
100 - 905 mm76 9374 003 2015 mm, 25 mm, 50 mm, 100 mm,

200 mm, 400 mm

150 - 1150 mm76 9374 004 2015 mm, 25 mm, 50 mm, 100 mm,

2x 200 mm, 400 mm
