Inserts for Indicating thread snap gauge 353

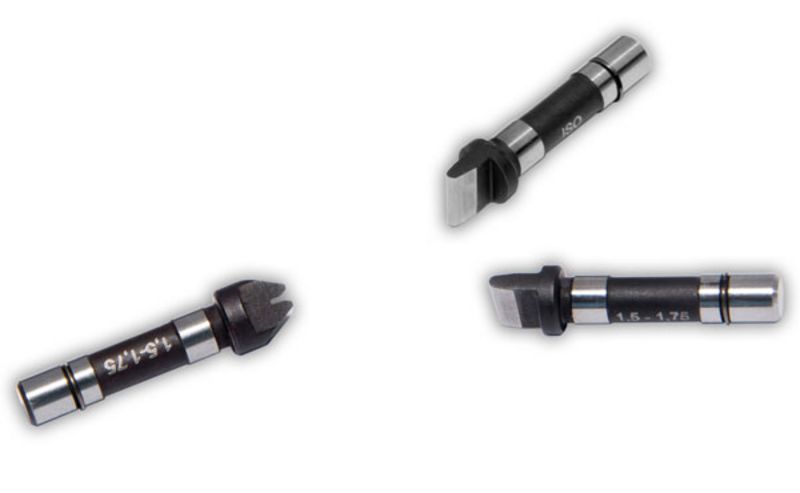

Interchangeable measurement inserts for edge measurement on various pitches of 60° metric or 55° BS- and Ww threads.



Application

  • for measuring 3- or 5-flute taps

Detailed information

Inserts with normal flanks (steel)*  Order No.Pitch / inch
55° BS- und Ww Threads
353/50.40 76 9235 016 2440  |  32
353/50.2876 9235 025 2428  |  26  |  24  |  22
353/50.2076 9235 037 2420  |  19  |  18  |  16
353/50.1476 9235 049 2414  |  12  |  11
353/50.1076 9235 064 2410  |  9  |  8
353/50.776 9235 073 247  |  6
353/50.576 9235 079 245  |  4 1/2  |  4  |  3 1/2  |

3 1/4

353/50.376 9235 094 243  |  2 7/8  |  2 3/4
353/50.276 9235 097 242 5/8  |  2 1/2  |  2
Inserts with normal flanks (steel)* Order No.Pitch
60° Threads
535/60.0576 9236 022 240,5 mm | 0,6 mm
535/60.0776 9236 028 240,7 mm | 0,75 mm | 0,8 mm
535/60.1076 9236 040 241,0 mm | 1,25 mm
535/60.1576 9236 046 241,5 mm | 1,75 mm
535/60.2076 9236 052 242,0 mm | 2,5 mm
353/60.3076 9236 061 243,0 mm | 3,5 mm
353/60.4076 9236 064 244,0 mm | 4,5 mm | 5,0 mm
353/60.5576 9236 076 245,5 mm | 6,0 mm

*Inserts are marked with the pitch.


Other Versions, also in carbide, upon request.
