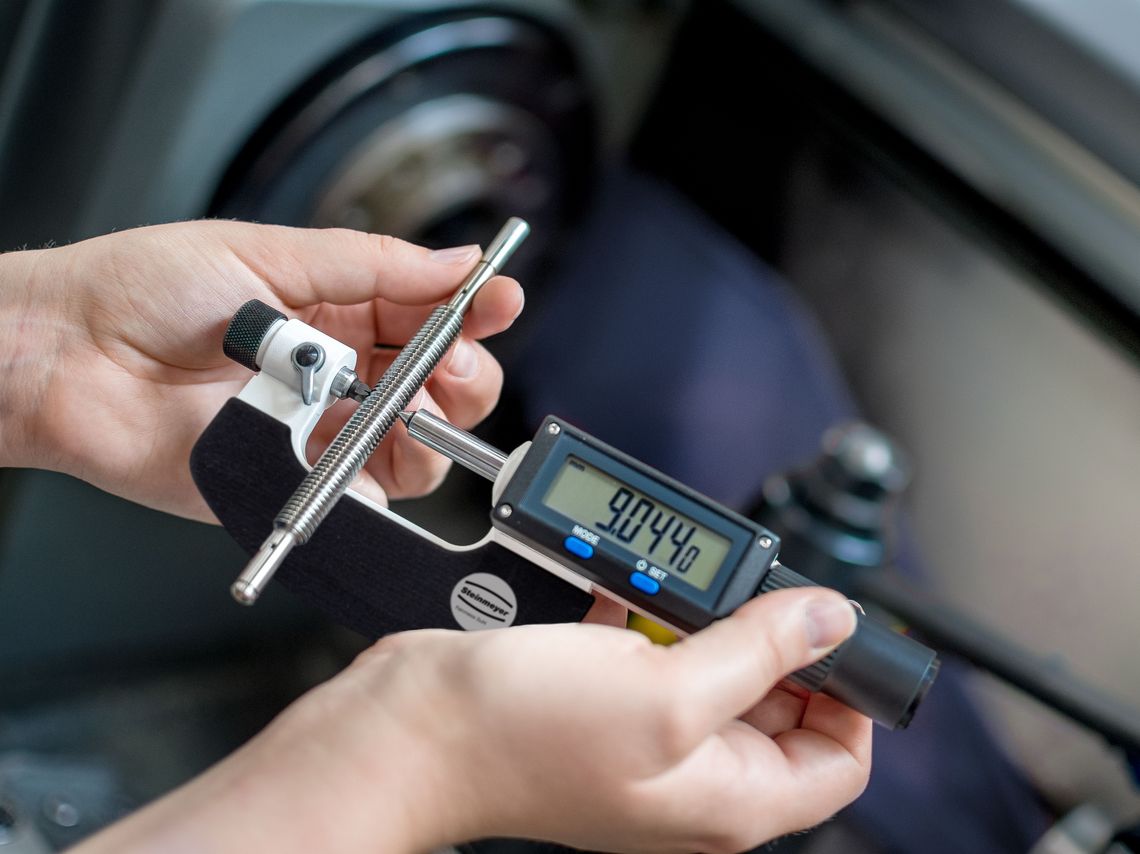

Detailed information
- switchable resolution:
- 0.01 mm / 0.001 mm / 0.0005 mm
- 0.0005 inch / 0.00005 inch / 0.00002 inch - measuring range 30 mm
- lead screw pitch 2 mm
- lead screw-ø 8 mm
- for inserts with shaft ø3,5x13,5 mm
- Linear measuring system, directly within Abbe measuring axis
- Reversabale counting (in case of ingoing lead screw the display value increases)
- (Non-rotating) Floating lead screw for high repeat accuracy, 2 mm pitch
- Switchable resolution of 0,5 μm, 1 μm & 10 μm
- Preset adjusting through lead screw possible
- Protection class IP65
- Inch/metric conversion inch / mm
- Interface proximity (Sylvac) for data transfer to measuring computer, wireless or cable
- Input and saving of PRESET and tolerance values
- Min- / Max-value memory
Accessories
- interchangeable thread anvils
- thread setting gauges
| Application range | Order-No. | Order No. with lifting option |
|---|---|---|
| 0-30 mm | 76 0803 001 20 | 76 0803 051 20 |
| 25-55 mm | 76 0803 002 20 | 76 0803 052 20 |
| 50-80 mm | 76 0803 003 20 | 76 0803 053 20 |
| 75-105 mm | 76 0803 004 20 | 76 0803 054 20 |
| 100-130 mm | 76 0803 005 20 | 76 0803 055 20 |
| 125-155 mm | 76 0803 006 20 | 76 0803 056 20 |
| 150-180 mm | 76 0803 007 20 | 76 0803 057 20 |
| 175-205 mm | 76 0803 008 20 | 76 0803 058 20 |
| Larger measuring areas and other special options upon request |
