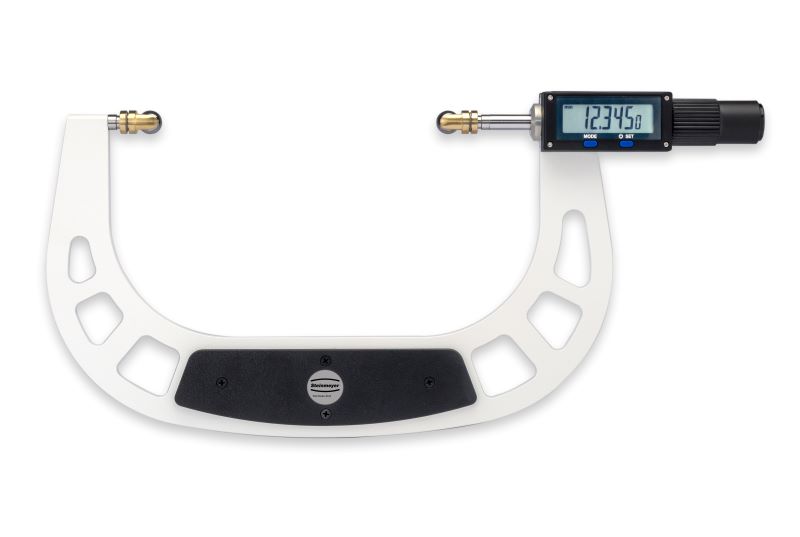

Detailed Information
- Error limits according to DIN 863
- High accuracy due to non-rotating (floating) lead screw
- Data interface for digital data transfer
- Function “hold value”
- Input and saving of PRESET-values
- Setting of tolerance values
- Min- / Max-memory, zero point setting
- Measurement conversion metric / standard (mm / inch)
- Also suitable for measuring rolls in holder
- Lead srew pitch 2,0 mm
- Pin diameter 3 mm / 6,8 mm
- LCD display: 6 mm
- Measuring range 30 mm / 1.18 inch
- Switchable resolution 0,01 mm / 0,001 mm; 0,0005 inch / 0,00005 inch
- Measuring force through spring ~ 7 N
| Application range | Order No. | Order No. with lifting option |
| Receiving pin diameter 3,0 mm | ||
| 0 - 30 mm | 76 0806 001 20 | 76 0806 051 20 |
| 25 - 55 mm | 76 0806 002 20 | 76 0806 052 20 |
| 50 - 80 mm | 76 0806 003 20 | 76 0806 053 20 |
| 75 - 105 mm | 76 0806 004 20 | 76 0806 054 20 |
| 100 - 130 mm | 76 0806 005 20 | 76 0806 055 20 |
| 125 - 155 mm | 76 0806 006 20 | |
| 150 - 180 mm | 76 0806 007 20 | |
| 175 - 205 mm | 76 0806 008 20 | |
| Receiving pin diameter 6,8 mm | ||
| 0 - 30 mm | 76 0806 101 20 | |
| 25 - 55 mm | 76 0806 102 20 | |
| 50 - 80 mm | 76 0806 103 20 | |
| 75 - 105 mm | 76 0806 104 20 | |
| 100 - 130 mm | 76 0806 105 20 | |
| 125 - 155 mm | 76 0806 106 20 | |
| 150 - 180 mm | 76 0806 107 20 | |
| 175 - 205 mm | 76 0806 008 20 | |
| Special versions available upon request. | ||
