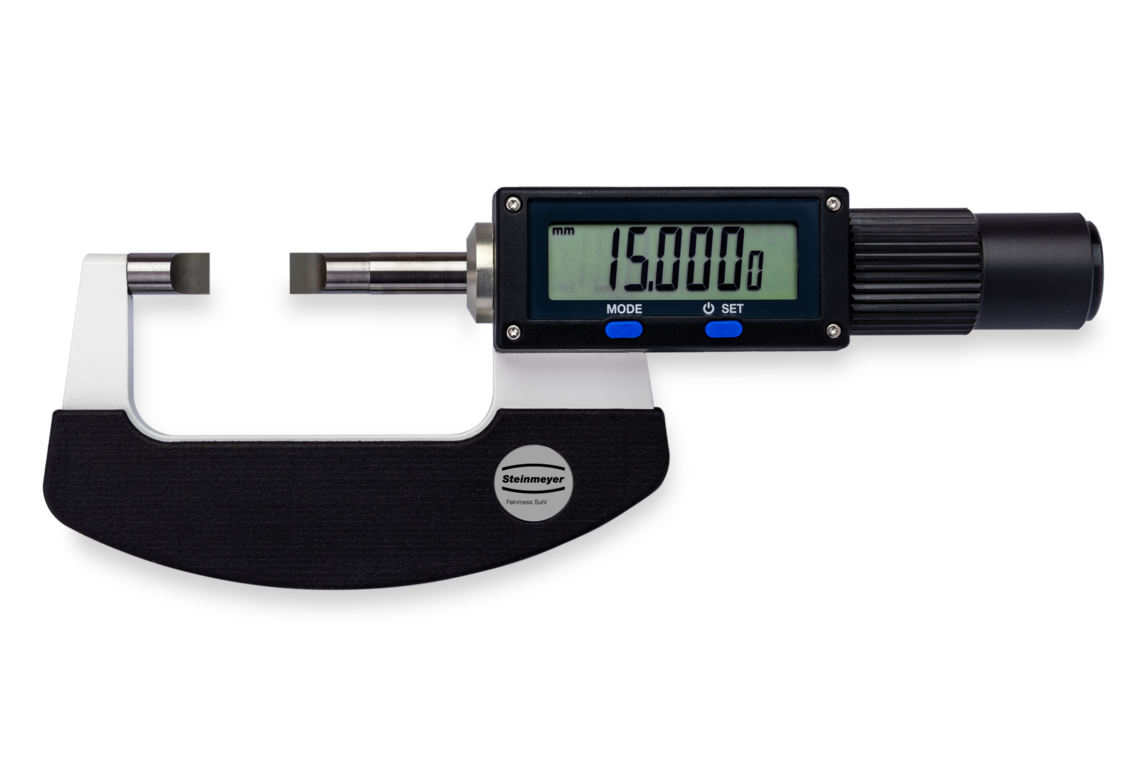

Digital Precision Micrometer with Blades 0811 and 0812
Digital micrometer with blades to measure thickness and length
Short description
- Standard: DIN 863 | DAkkS calibrated acc. to DIN EN ISO/IEC 17025:2018
- Measuring range: 1 - 85 mm (depending on version)
- Resolution: < 0,0001 mm (< 0,1 µm) / switchable to 10 µm, 1 µm, 0,5 µm / 0,0005“, 0,00005“, 0,00002“
- Display: LCD display
- Protection class: IP65
- Data interface: Triple I (USB cable or wireless)
- Optionally available: software
Detailed information
- Switchable resolution 10 µm, 1 µm, 0,5 µm / 0,0005“, 0,00005“, 0,00002“
- Spindle pitch 2,0 mm
- spindel type non-rotating
- Measuring force by ratchet approx. 7 N
- Measuring surface diameter 8 mm
- Repeatability 0,5 µm
- linear measuring system, directly within Abbe measuring axis
- switchable counting direction (in case of ingoing lead screw, the display value increases)
- (non-rotating) Floating lead screw for high repeatable accuracy
- switchable resolution of 0,5 µm, 1 µm & 10 µ m
- preset adjusting of display with slead screw possible
- inch conversion metric / standard (mm / inch)
- interface proximity (Sylvac) for data transfer to measuring computer, wireless, or cable
- input and saving of PRESET and tolerance values
- also available carbide measuring surfaces to ensure great stability
- Min- / Max-value memory
- more versions and measuring ranges available
- optionally with lifting lever
Accessory
- Interfaces for USB or wireless data transfer
- PC software IBR Simkey for USB and wireless data transfer
- PC software FMS View for wireless data transfer
Software FMS View
The optional software FMS-S01 offers the possibility to configure the Digital Passameter also directly via a cable on the PC and to transfer measured values, e.g.:
- display of the current values of different digital devices
- multi-channel function i.e. parallel display of up to 10 different devices
- extensive transfer function of the values into Microsoft Excel
- protocol formats or device types: Sylvac duplex, Sylvac simplex, IBRit-md 1, Heidenhain ND, TESA GTLXX USB, ALMEMO, MAHR 16EXu, PU 11, PU 23, PU 26, PU 60, PU 300, MFP Control, PU 36, IK220, Solartron Orbit3
> more about the software
| Blades parallel (vertical) to brackets | ||
| Application range | Order No. | |
| 0 - 30 mm (Blades 0,35 x 3,5) | 76 0811 131 20 | |
| 25 - 55 mm (Blades 0,35 x 3,5) | 76 0811 132 20 | |
| 75 - 105 mm (Blades 1 x 3) | 76 0811 324 20 | |
| 100 - 130 mm (Blades 1 x 3) | 76 0811 325 20 | |
| 125 - 155 mm (Blades 4 x 6) | 76 0811 340 20 | |
| 175 - 205 mm (Blades 4 x 6) | 76 0811 342 20 | |
| 300 330 mm (Blades 4 x 6) | 76 0811 347 20 | |
| Blades horizontal to brackets | ||
| Application range | Order No. | |
| 0 - 30 mm (blades 1 x 3) | 76 0812 321 20 | |
| 25 - 55 mm (blades 1 x 3) | 76 0812 322 20 | |
| 0 - 30 mm (blades 4 x 3) | 76 0812 381 20 | |
| 25 - 55 mm (blades 4 x 3) | 76 0812 382 20 | |
Other cutting edge widths available. Optionally with lifting lever. Special versions upon request. | ||
